The threaded holes arranged in a partial circle in the cylinder cap can be used for cylinder mounting. This makes sure that the cylinder force is applied centrically to the fixation so that no lateral forces are generated.
This is a cylinder without any degree of freedom that permits an inflexible installation. The cover is equipped with a spigot.
Additional parts for mounting, such as flanges, can be attached to the cylinder.
Do not strain cylinders when installing.

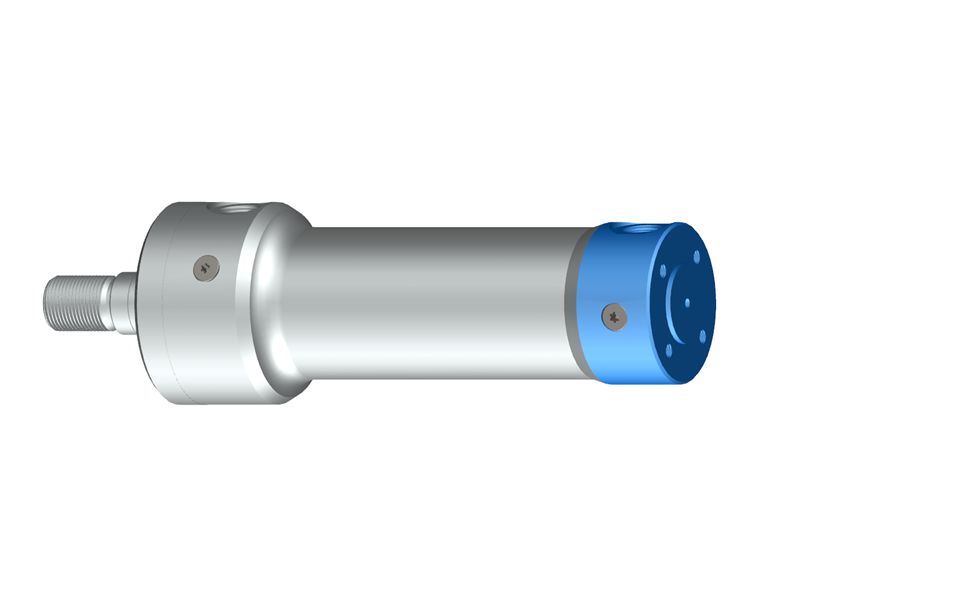

Single-rod cylinder
with threaded holes on cap sid
