A Hänchen hydraulic actuator is characterized by:
  • extremely long service life
  • high control accuracy
  • space-saving construction
  • high efficiency
  • very little wear and tear
  • extremely long service intervals

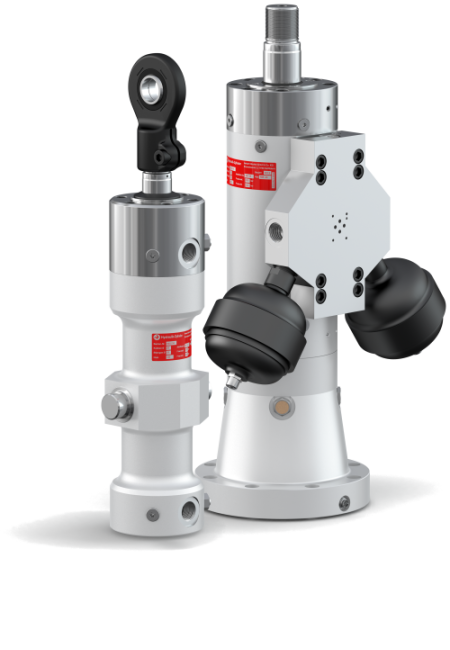

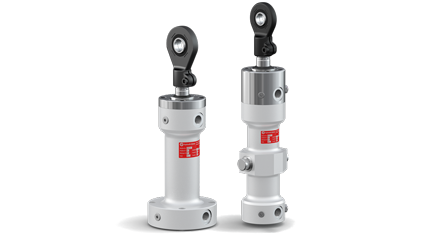

Industrial hydraulic cylinder
Industrial hydraulic actuators offer a number of advantages

The essential advantage of industrial hydraulic cylinders is their ability to continuously and simultaneously provide full power at full speed - without any negative effects on the service life. All cylinders of Hänchen's 120 and 300 series also feature a characteristic compact construction.
Hydraulic cylinders of the 120 and 300 series
more about industrial hydraulic cylinder
Standard hydraulic cylinder according to DIN and ISO
Mounting dimensions according to DIN ISO 6020/6022
To guarantee exchangeability between products from different manufacturers, standard cylinder for the pressure range 160 bar can be used. Hänchen standard hydraulic cylinders comply with the required standard mounting dimensions - but their true strength is that they also meet Hänchen quality standards.
Hänchen ISO hydraulic cylinders - Our standard hydraulic cylinders of Hänchen's 250 and 550 series
more about standard hydraulic cylinder DIN/ISO

Servo hydraulic actuator
Hydraulic servo actuators with valves and sensor technology

Sensor technology such as force or position transducers allow very large operating areas. The selection of the right control strategy creates precise and highly dynamic hydraulic drives with extremely high energy densities.
Servo hydraulic actuators - servo cylinders
more about servo hydraulic actuator

Test hydraulic actuator
Servo actuators for inspection and test applications

High speeds, frequencies, accelerations: hydraulic test actuators of the 320 test cylinder series with integrated position transducers always keep up. Test actuators are used wherever high dynamics are required - in test machines or industrial applications.
High speeds, frequencies, accelerations: test cylinders of the 320 series with integrated position transducers always keep up.
more about test hydraulic actuator

Custom hydraulic cylinder
Special hydraulic cylinders - custom-tailored for you

The design and production of individual, customer-specific solutions is one of Hänchen's strong points. Thanks to decades of experience, our wide range of standardized hydraulic actuators, and the many projects we have realized, there is almost no prototype risk for our custom hydraulic cylinders.
The design and production of individual, customer-specific solutions is one of Hänchen's strong points
more about custom hydraulic cylinder

Industrial hydraulic cylinders in Hänchen quaility

Passion for high-quality hydraulic cylinders needs a basis of accuracy down to the last detail. Our cylinder production makes no compromises on quality, giving you every reason to choose Hänchen products:


80 % Vertical Integration.

100 % Made in Germany.

100 % Quality.

Made in Germany | Hänchen

Processing
Low friction. Low wear. Long life time.

The high surface quality and geometrical accuracy of the component parts of every single Hänchen cylinder guarantee a long life time without failure.

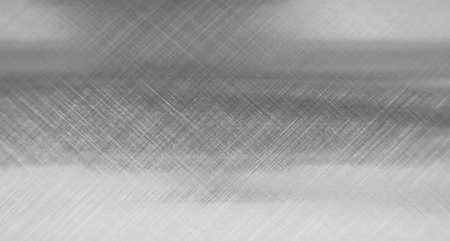

Honed surfaces

For the best lubrication and running properties and as little wear as possible on cylinders and seals, the cylinders' sliding surfaces are refined with a cross-hatch finish.



For the best lubrication and running properties and as little wear as possible on cylinders and seals, the cylinders' sliding surfaces are refined with a cross-hatch finish.

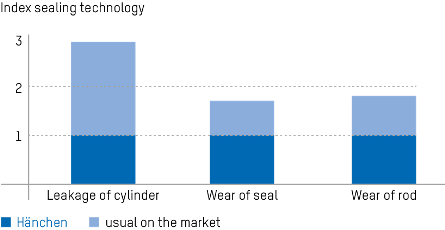

Current sealing technology

The constant development of our sealing systems - by combining already marketed and in-house developed seals - optimise our cylinders regarding wear, friction and leakage.



A current sealing technology

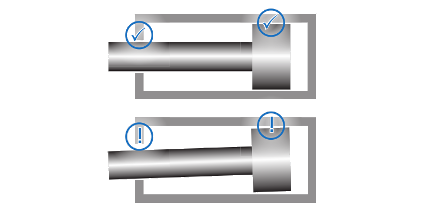

H7/f7 – Clearance fit

The guide clearance must be neither too small nor too large. This is why Hänchen places so much importance on optimal accuracy. The result is reduced stress on the guide and thus less wear on the component parts.



The guide clearance must be neither too small nor too large. This is why Hänchen places so much importance on optimal accuracy.

Design
Three components. One unit. Easy handling.

The fewer component parts a cylinder has, the less accident-prone it is. And the simpler and safer maintenance and installation is. The three main parts of a Hänchen cylinder:

Piston rod

In Hänchen products, piston and piston rod are inseparably joined. The piston is coated with non-ferrous metal, enabling a precise metallic guide. The sophisticated rod ends with rounded edges permit a sealfriendly installation.

In Hänchen products, piston and piston rod are inseparably joined. The piston is coated with non-ferrous metal, enabling a precise metallic guide. The sophisticated rod ends with rounded edges permit a sealfriendly installation.

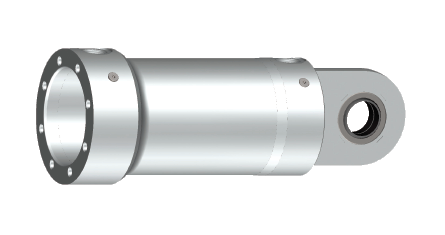

Cylinder tube

Round-head design, inseparably welded to the cylinder mounting. Drilled ports permit a space-saving installation with many options for adjustment to various applications.

Round-head design, inseparably welded to the cylinder mounting. Drilled ports permit a space-saving installation with many options for adjustment to various applications.

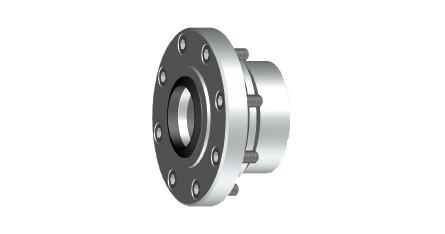

Cover

A stick-slip-free cover type that is perfectly coordinated to the requirements is crucial for the service life of the entire cylinder. Special feature: The synthetic guide is permanently integrated, reaches a better load distribution and minimises the risk of scratches caused by dirt particles.

Special feature: The synthetic guide is permanently integrated, reaches a better load distribution and minimizes the risk of scratches caused by dirt particles.

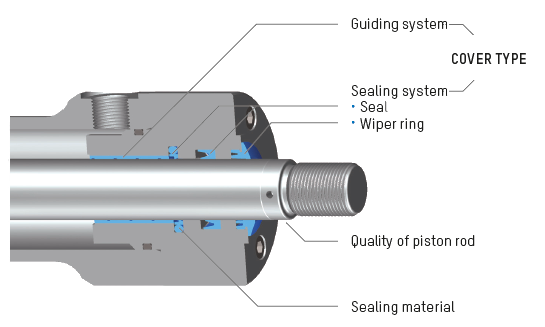

Equipment in the cover
Unlimited possibilities.

For the perfect combination, the cover type with the best sealing and guiding system* with matching piston rod quality and the right sealing material is selected based on your application.

  • high temperatures in steel mills,
  • high stress in outdoor applications,
  • hygiene requirements in food processing,
  • tests in salt spray fog, in climatic chambers or in a lab:


We'll tune your hydraulic cylinder. Tell us what you need – only
those who set conditions get the perfect industrial actuator.



We'll tune your hydraulic cylinder. Tell us what you need – only those who set conditions get the perfect cylinder.

Cover type
Accurate fitting combinations.

Sealing System Basic design
Lip seal, wiper ring		 ServocopⓇ
Compact seal, lip seal, wiper ring		 Servoseal
Servoseal®, lip seal, wiper ring		 ServofloatⓇ
Floating gap seal, functional oil seal, wiper ring		 Functional oil seal
Functional oil seal, wiper ring
GUIDING SYSTEM Basic design Lip seal, wiper ring Servocop® Compact seal, lip seal, wiper ring Servoseal® Servoseal®, lip seal, wiper ring Servofloat® Floating gap seal, functional oil seal, wiper ring Functional oil seal Functional oil seal, wiper ring
Servoslide® Synthetic guide ServoslideⓇ
Synthetic guide
  • Simple movements
  • Side loads due to lateral movement
  • Low stick-slip
  • v ≤ 0.5 m/s
  • Controlled movements
  • Long-stroke oscillations
  • Side loads due to lateral movement
  • Mostly stick-slip-free
  • v ≤ 2 m/s
  • Sensitive movements
  • Long- and short-stroke oscillations
  • Side loads due to lateral movement
  • Low-wear
  • v ≤ 2 m/s
  • Sensitive movements
  • Long- and short-stroke oscillations
  • Side loads due to lateral movement
  • Low-wear
  • v ≤ 2 m/s

Metallic guideMetallic guide
  • Simple movements
  • High temperatures
  • Universal application
  • Low stick-slip
  • v ≤ 0.5 m/s
  • Simple movements
  • High temperatures
  • Mostly stick-slip-free
  • v ≤ 1 m/s
  • Simple movements
  • Temperatures up to 80 °C
  • Low-wear
  • v ≤ 1 m/s
  • Simple movements
  • High temperatures
  • Low-wear
  • v ≤ 1 m/s

PTFE Wear ringsPTFE-
Wear rings
  • Controlled movements
  • Long-stroke oscillations
  • Side loads due to lateral movement
  • Long cylinder stroke
  • Mostly stick-slip-free
  • v ≤ 3 m/s
  • Sensitive movements
  • Long- and short-stroke oscillations
  • External side loads or due to lateral movement
  • Low-wear
  • v ≤ 3 m/s
  • Sensitive movements
  • Long- and short-stroke oscillations
  • External side loads or due to lateral movement
  • Low-wear
  • v ≤ 4 m/s

Servobear® Hydrostatic bearingServobearⓇ
Hydrostatic bearing
  • Sensitive movements
  • Short-stroke oscillations, highly dynamic
  • Highest side loads
  • No leak oil pump required
  • v ≤ 4 m/s

Low level of friction force

Whether sensitive, free-moving or robust – the strength of Hänchen cylinders is in their extreme adaptability.

Depending on what you need, we offer you the right cover type with optimal friction force for your static or dynamic application.

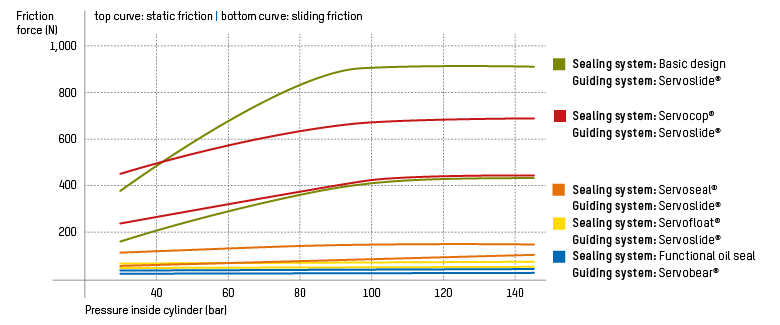

Friction in dependence on sealing and guiding system in the cover

Friction in dependence on sealing and guiding system in the cover

Values measured on the double-rod cylinder (bore 46 mm without seal, rod Ø 40 mm) during sine operation according to VDMA 24577 at 50 °C/HLPD46.
The level of the friction force curves is lower than usual on the market.

Equipment on piston
The perfect sealing system on the piston

Beside the selected cover type, the right piston design is also crucial for the dynamic movement of the cylinder.

If the cylinder is to be held in position under load for a longer period of time during operation, the rectangular compact seal can be equipped with a static elastomer seal for load-holding function. This prevents possible lowering of the piston rod.



SEALING SYSTEM Rectangular compact seal Servoseal® Throttle gap (without seal)
GUIDING SYSTEM GUIDING SYSTEM Rectangular compact seal GUIDING SYSTEM Servoseal GUIDING SYSTEM Throttle gap
Metallic guide
  • Simple movements
  • Long-stroke oscillations with movements longer than the seal width
  • Piston leakage: none
  • Pressure-dependent friction
  • v ≤ 4 m/s
  • Sensitive movements
  • Long- and short-stroke oscillations
  • Piston leakage: very low
  • Low friction
  • v ≤ 4m/s
  • Sensitive movements
  • Long- and short-stroke oscillations
  • Piston leakage: high
  • Very low friction
  • v ≤ 4 m/s
