Mounting
Mounting elements of round cylinders
The different mounting elements of round cylinders, such as spherical rod eyes, trunnions or flanges, serve to transmit power. In Hänchen products, these are welded directly to the cylinder tube.
Take into account a potential expansion of the cylinder due to pressure and temperature.
The hydraulic cylinder acts as an operating element. It neither can nor may be a construction element. During mounting and operation, no lateral forces must be applied to the piston rods.
In case of swivel-mounted cylinders, allow for sufficient space between spherical rod eye and clevis, clevis bracket etc. for swivelling and tilting.
Overview of the mountings
 |
Basic mounting |
 |
Threaded holes cap-side |
 |
Side lugs welded mounting |
 |
Bolted side lugs mounting |
 |
Circular flange head side |
 |
Circular flange on cylinder body |
 |
Circular flange on cap-side |
 |

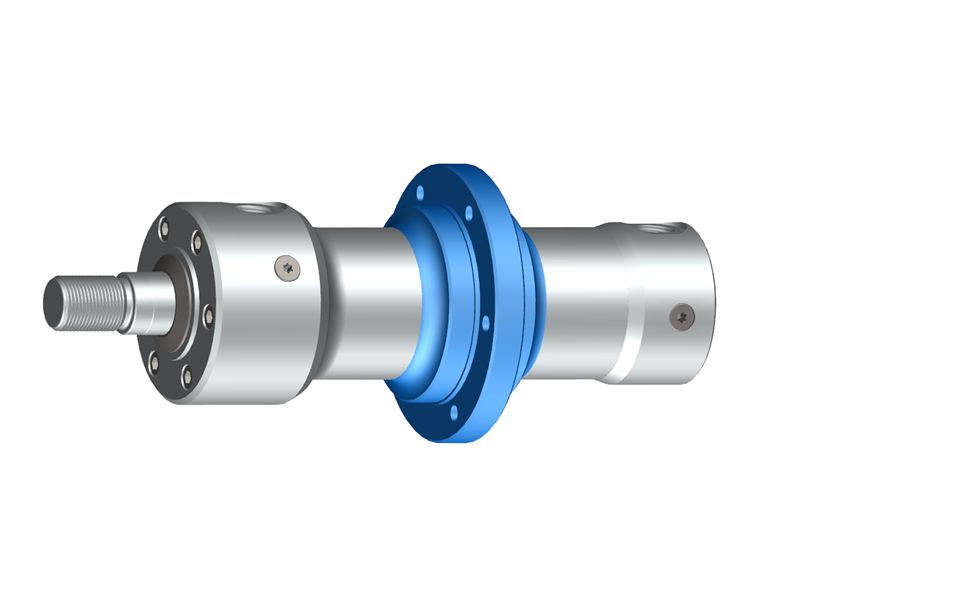

Intermediate flange |
 |
Pivot mounting with spherical bearing |
 |
Pivot mounting with plain eye |
 |
Intermediate trunnion |
