The cylinder head designed as a flange can be used for cylinder mounting. This makes sure that the cylinder force is applied centrically to the fixation so that no lateral forces are generated.
This is a cylinder fixation without any degree of freedom that permits an inflexible installation. The flange is equipped with a spigot.
Additional parts for mounting, such as flanges, can be attached to the cylinder.
Do not strain cylinders when installing.

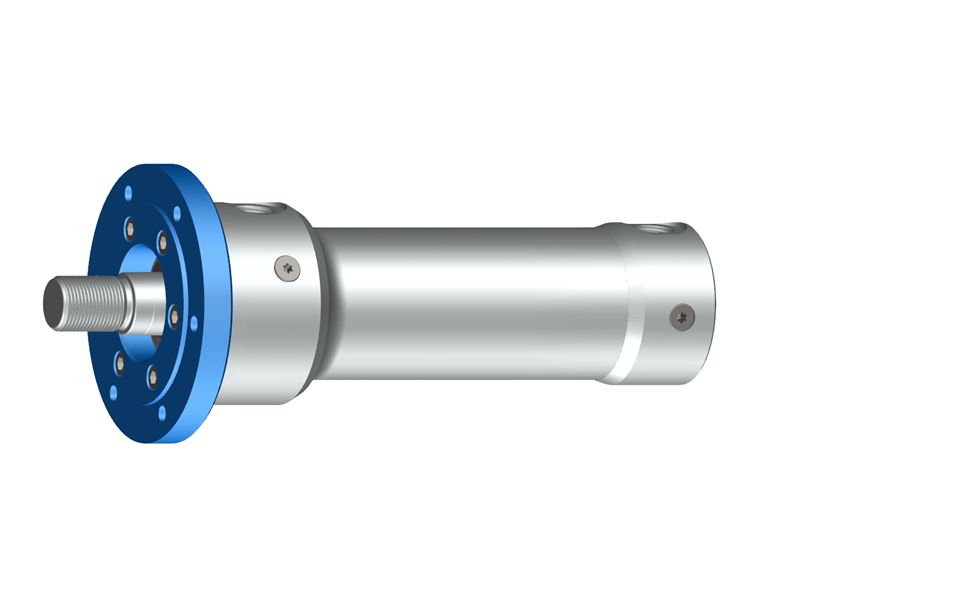

with circular flange on head side
