This distinguishes our hydraulic clamping device:
  • energy-efficient during longer clamping processes
  • suitable for hydraulic cylinders and round rods
  • holding loads of up to 750 kN
    for rod Ø of 16-160 mm
  • special solution up to 2,000 kN
    for rod Ø of up to 300 mm

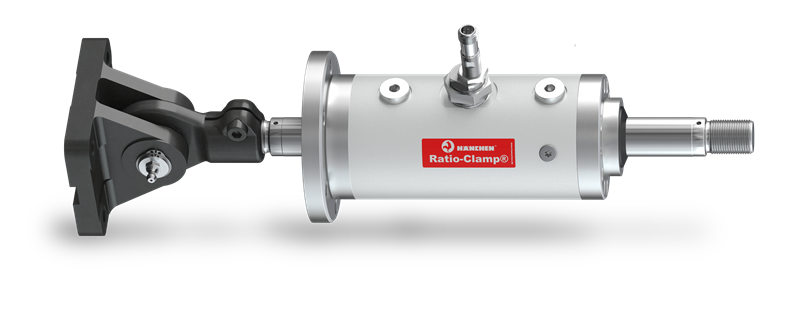

Hydraulic clamping device Ratio-Clamp®
Hydraulic rod clamping device and locking unit from Hänchen

The patented hydraulic clamping device Ratio-Clamp® hold the rod in a standstill and locks it into position mechanically. The clamping effect is immediate, lasts for an unlimited period of time and doesn't require an energy supply – suitable for various applications, as a safety element or for locking component parts into place. 100% reliable!
Rod clamping device Ratio-Clamp® hold the rod in a standstill and locks it into position mechanically.
Hydraulic rod clamps for sensitive applications

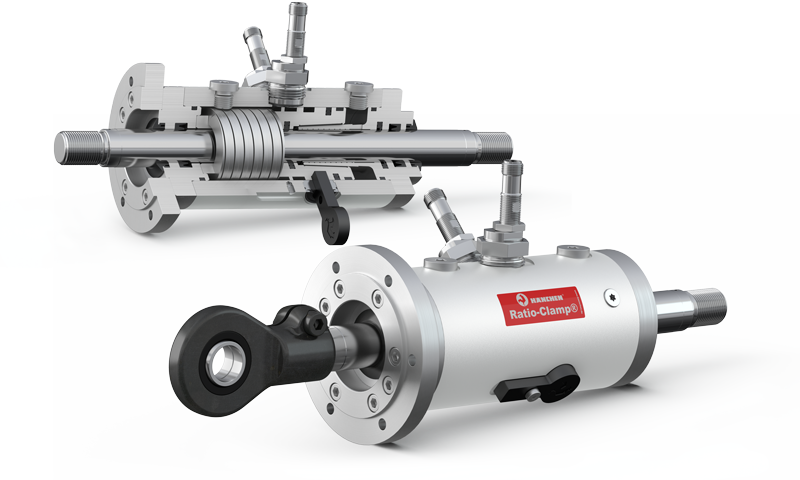

Locking unit with sealing system pressure piston seal
For very sensitive applications, we recommend the design with pressure piston seal, where no pressurized seal is touching the rod. Thus, the sliding friction is very low and remains constant regardless of the releasing pressure.
Locking unit with sealing system pressure piston seal

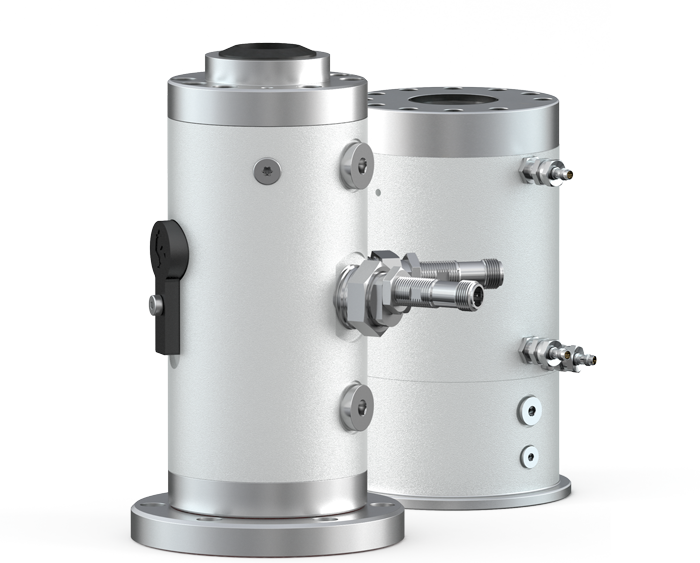

Safety hydraulic clamping device for hydraulic presses, injection moulding machines, …
DGUV Test-certified hydraulic safety clamping

Featuring a particularly high safety reserve, the clamping devices certified by DGUV Test (testing and certification system of the Deutsche Gesetzliche Unfallversicherung) are approved for the use in hydraulic presses according to EN 16092-3, and in plastic injection moulding machines according to EN 201.
Safety hydraulic clamping device for hydraulic presses, injection moulding machines
