Characteristics of exhaust port filters:
  • screw-in breather vent plug
  • high dirt separation capacity
  • incl. sealing edge, no sealing elements required
  • working pressure up to 10 bar
  • temperature up to 100 °C
  • fluid: air, gases, steams (bronze-compatible)
  • available for delivery from stock

Function of exhaust port filters or breather vents
Filter air, gases, and steams

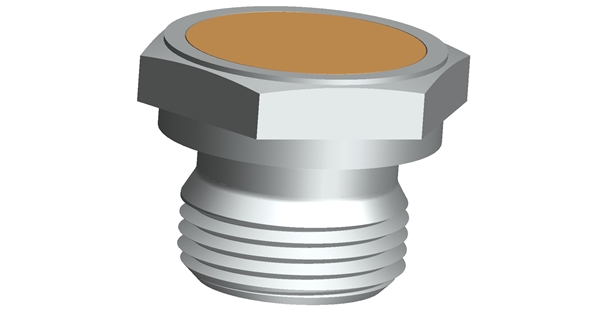

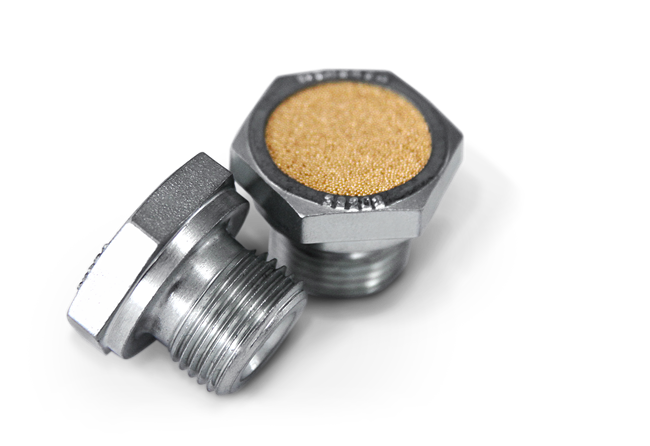

Hänchen exhaust port filters consist of a sintered bronze element inside a zinc-plated steel body. They serve to ventilate spaces exposed to low pressure, e.g. on oil containers or unpressurized chambers in hydraulic cylinders or hydraulic systems. Breather vent filters prevent foreign materials from being carried in by the airflow and thus prevent damage to the machine. Hydraulic breather vents are used as air filters and exhaust port filters. The distinguishing features of this breather vent plugs are their high dirt separating capacity and a long service life, and they are particularly suitable for filtering flowing gases and air.



Cleaning of the exhaust port filters


Visible dirt on the filter element can be removed in a reverse air flow. Dirt inside the breather vent plug, such as oil, can be removed using a solvent.

Hänchen hydraulic breather vents serve to ventilate spaces exposed to low pressure, e.g. on oil containers or unpressurized chambers in hydraulic cylinders or hydraulic systems.

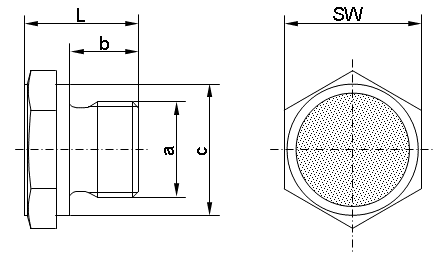

Technical data of breather vent plugs

Thread type
b
c
L
SW
Article no.
Airflow rate in
[l/min] at dp=0.25 bar
G 1/8 8 14 18 17 0300700A 50
G 1/4 10 19 18 22 0300800A 100
G 3/8 12 23 20 24 0300900A 130
G 1/2 14 26 23 27 0301000A 160
G 3/4 16 32 25 32 0301100A 220
G 1 18 39 30 41 0301200A 400
M 10 x 1 8 14 18 17 0301300A 50
M 12 x 1,5 10 17 18 22 0301400A 100
M 18 x 1,5 10 23 20 24 0301500A 130
M 22 x 1,5 14 16 23 27 0301600A 160
M 27 x 2 26 32 25 32 0301700A 220
M 33 x 2 18 39 30 41 0301800A 400
Technical data of exhaused port filters or breather vents
