The rod eye attached to the cylinder body can be used for cylinder mounting. This makes sure that the cylinder force is applied centrically to the fixation so that no lateral forces are generated.
This is a cylinder mounting type with one degree of freedom that permits pivot mounting. A non-ferrous metal sleeve subject to regular maintenance inspection is installed in the rod eye.
Additional parts for mounting, such as flanges, can be attached to the cylinder.
The non-ferrous metal sleeves installed are subject to regular maintenance inspection.

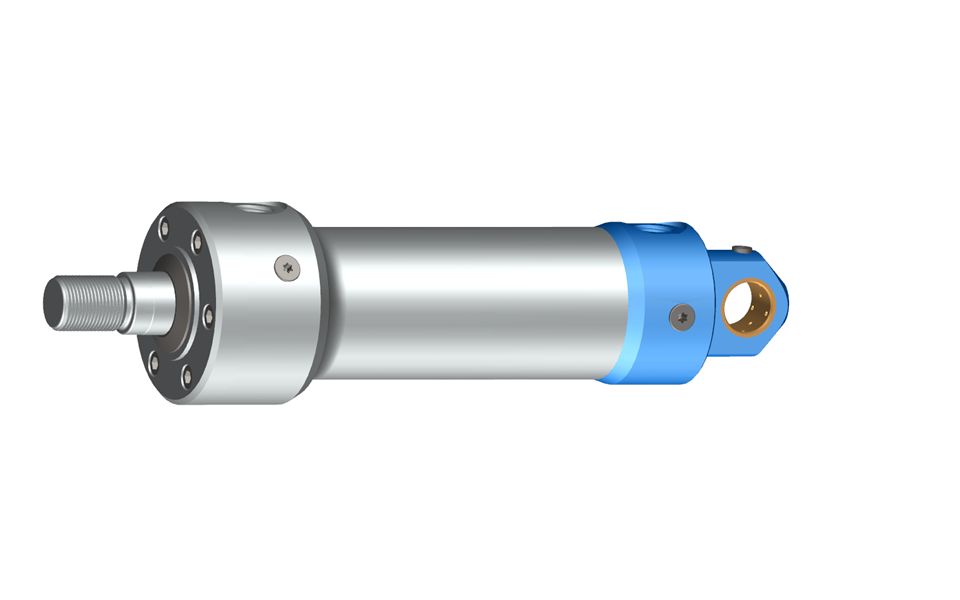

Single-rod cylinder
pivot mounting with plain eye
