This is what distinguishes our test cylinders:
  • High standing stability
  • Very high positioning and repetition accuracy
  • For extremely slow & very fast movements
  • Stick-slip free movements

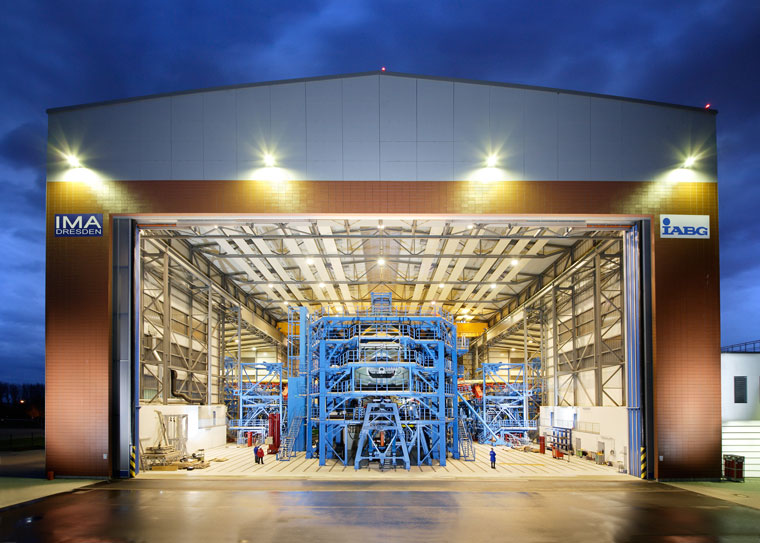

Figure 1 Airplane set up in a hall for material load tests
Figure 2 The test stand: Top view of wings
Figure 3 Servo hydraulic actuator for test systems are also used for systematic application of stress to the hull

Requirement profile

Technical requirements

  • Movement of the wing 2.9 m upwards, 1.2 m downwards
  • Smooth-running hydraulic cylinders to avoid spurious vibrations
  • Tolerances up to 3 % of the nominal cylinder load
  • Speed up to 670 mm/s
  • Durable hydraulic cylinders

Realisation with Hänchen test cylinder

  • No disturbing forces, such as stick slip effects
  • Always the same friction, regardless of pressure
  • Due to the Servofloat® cylinder design, 30 % cost advantage compared to cylinders with hydrostatic piston rod guides
  • High stability during 24/7 continuous operation

Implementation

30 types of aeroplane in 40 years

The aeroplanes which have been tested since the 60's with Münchner IABG acting as main contractor range from the Tornado to the Airbus - including the Airbus numbers 300, 310, 320, 330 and 340. The aim of this extended time test is to provide experimental evidence that the airframe has sufficient serviceable life and to eliminate any possible weak points still in evidence. Clients requiring these tests include all the major European aircraft manufacturers. The current test is carried out by the IABG in conjunction with Dresdener IMA Materialforschung und Anwendungstechnik GmbH. It only took less than two years to design and construct the test. The static tests were started in April 2001 and shortly before the first flight in September, the endurance tests were started with a new control technique developed by the IABG to realize the tests in a extremely short timeframe.

Tests with Hänchen test hydraulic actuator

Since 1974 Hänchen hydraulic cylinders have been used for the majority of these dynamic tests for aircraft. The servo hydraulic test cylinders are supplied with a throughput of 4,400 litres of compressed oil per minute over many kilometres of pipelines with diameters of up to 20 cm on the main pipes. Process computers coordinate the sequences of movements in such a way that the loads correspond to the day-to-day flight realities of the Airbus A 340-600. In order to make these movements as realistic as possible, the servo hydraulic actuators are driven by proportional valves. This process mainly uses testing machine cylinders with floating annular gap sealing, patented by Hänchen. For special tasks, however, cylinders with hydrostatically mounted piston rod guides are also used.

Simulation not only on the computer

"Discovering damage in this kind of test is part of everyday life", is how Klaus Woithe, graduate engineer and IABG branch manager in charge of the project sums up the experience gained over 40 years. "Even modern computer models with FEM, the finite elements method, still cannot replace the dynamic endurance tests", he maintains. Indeed, computer analysis cannot, as a general rule, reproduce certain effects occurring in reality with the required precision. Since aeroplanes are usually designed nowadays to resist a certain amount of damage, cracks several centimetres long can occur in the fuselage skin without compromising the safety of the aircraft. The demonstration trials in Dresden are carried out on the wing structure with approx. 60 metres wing span and a 33 metre long fuselage segment. Undercarriage and engine pylon dummies serve to introduce the loads coming from these components.

"In this respect we have, over 27 years together with Hänchen, pushed the boundaries of what is possible time and time again, yet we have nevertheless achieved a good cost-performance ratio while remaining highly committed to running on schedule."
Klaus Woithe, IABG

Hydraulics as a core technology

"Hydraulics is the core technology for load simulation in the dynamic test for material fatigue on aircraft. This is because control, measuring and fluid technology work hand in hand here", says Woithe. "The computers have to make stipulations in real time which are then activated in the set-actual comparison with the help of PLCs via control circuits with load cells. Apart from control they also serve to prevent overload. High-quality testing servo hydraulic actuators are a basic prerequisite for guaranteeing that this test is realistic. In this respect we have, over 27 years together with Hänchen, pushed the boundaries of what is possible time and time again, yet we have nevertheless achieved a good cost-performance ratio while remaining highly committed to running on schedule." The testing servo hydraulic actuators from Ostfildern were successful on account of their strengths, especially their low friction, optimum tightness, excellent response, low abrasion, extreme piston speed, low initial break-out torque, fatigue strength and long serviceable life.

Two and a half lives in 18 months

For safety reasons experimental evidence is taken over more than two and a half times the expected life of an aircraft. In order to test the material fatigue, all the stages of flight are simulated. This includes takeoff and landing as well as all stages of flight in which the Airbus is subject to load alternations, namely vertical and horizontal gusts and flight manoeuvres. In this way even a long-haul transatlantic flight in good weather conditions can be condensed into a simulation program of quarter of an hour or half an hour. In the categories of short, medium and longhaul flights a series of typical flights in each case were defined from the standard flight right through to the difficult flight in extreme conditions. They consist of load data for the airframe mapped on a gradient diagram. This is because the cabin is set at an increased internal pressure by means of a compressor unit and two air chambers depending on the simulated altitude, in order to simulate the difference in pressure between the cabin and the surroundings depending on the altitude of each flight. A flight-by-flight program sequence encompassing more than 1,000 flights is generated from these types of flight. It is repeated as many times as necessary to reach the stipulated total number of flights. Constant monitoring by inspectors, comprehensive, day-long inspections of the entire test structure as well as regular measuring of 3,600 strain gauges and 80 displacement transducers guarantee that damage is detected as soon as it occurs. Since the aircraft is constructed in such a way as to resist a certain amount of damage, the development of cracks is observed from the point at which they arise until they reach a critical length. Then they are repaired or the part is replaced. A cleverly devised monitoring system ensures that the aircraft is not inadvertently exposed to unintentionally excessive loads in particular.

Floating annular GAP sealing

Precision requirements dictate that disruptive forces such as stick-slip effects of the servo hydraulic cylinders - Test should be avoided. Very low restoring force occurs on the wingtips, for example, but they must be moved at the same time at up to 670 mm/s. In the process the wings are moved upwards up to 2.9 m from the zero position and downwards up to 1.2 m. Spurious oscillations of the flexible structures can easily occur, however, if the pistons and piston rods of the servo hydraulic test actuators are not as smooth running as possible. In this case tolerances of only 3 per cent of the nominal load of the servo hydraulic actuators are accepted; in practice they are under 2 per cent. Spurious oscillations would lead to unwanted load variations and would distort the test results. For this reason, the cylinders with the floating annular gap sealing patented by Hänchen are particularly favoured for use in structure trials on aircraft, since they always have the same friction irrespective of the pressure. A steel bush inside them deforms through a choke gap and thus produces a non-contact packed sealing gap of a few 1/100 mm. The prerequisite for this technology is a production precision in the region of a few μm, since otherwise the leakage would lead to high hydraulic losses. This cylinder series (PZR) has a cost advantage of around 30 % when compared with cylinders with hydrostatically mounted piston rod guides (PLZ). This is because the PZR cylinders, on account of their very low friction, offer the possibility of very high positioning and repeat precision, are stick-slip free and admirably suited to both extremely slow and extremely fast movements alike. Another crucial factor determining the choice of the Hänchen servo hydraulic actuators for test systems, however, was their stability. After all, the trial runs for 24 hours seven days a week.

Jörg Beyer, mediaword
© Hänchen 2003
