Advantages of our industrial hydraulic cylinders:
  • starting from a standstill under full load
  • continuously and simultaneously available power
  • compact construction
  • low friction
  • no risk of failure
  • no stick-slip effect

Properties of an industrial hydraulic cylinder
Advantages of hydraulics

Good to go: Full speed ahead under full load

The compact design with low inertia resistance guarantees a high power density. The cylinders can start moving immediately from standstill fully loaded, and can quickly change direction.

On position: in every situation

Speed adjustment is stepless with a simple control concept and high positioning accuracy – even when requirements vary greatly.

Fast: even under high loads

Force and speed are continuously and simultaneously available at full capacity.

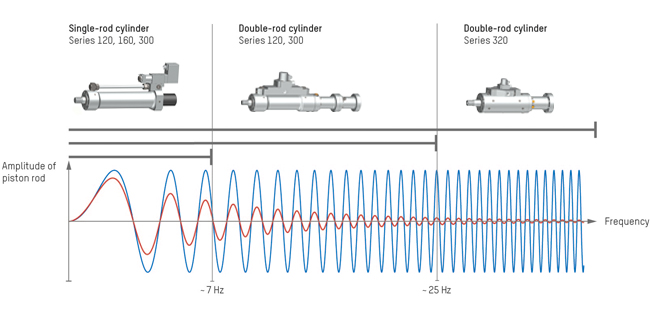

Cylinders for every frequency range

The required dynamics of the drive determine the cylinder's type of effect. When fast control valves are used, even single-rod cylinders achieve a high profile quality at high frequencies.

The limit values shown in the diagram are intended as guide values for your design. They depend on various operating conditions – we can help you make the right choice.

Which cylinder series is suitable for which frequency range:

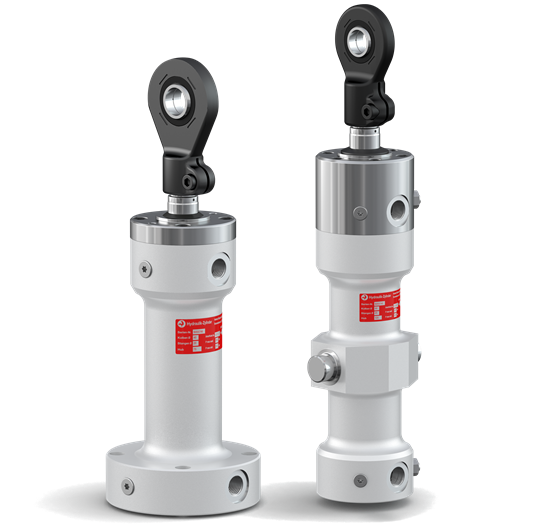

Hänchen industrial hydraulic cylinder series
For long and short-stroke oscillations

Our extensive standard range is perfectly suited for many different applications.

If a higher batch size is required repeatedly, it is worthwhile to design the hydraulic cylinder to the exact specific requirement. In this respect, Hänchen as a hydraulic cylinder manufacturer takes a holistic approach in order to offer a serial cylinder with an optimised price-performance ratio.
• Low cylinder unit costs
• Cylinder can deliver exactly what the application requires
• Fast delivery times thanks to processes optimised for serial production
• Rapid supply of spare parts by keeping the seals in stock

If you need double-acting cylinders as serial cylinders, please contact us directly.

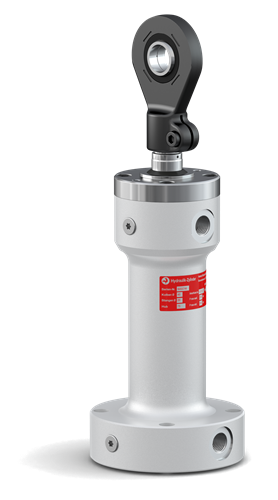

Industrial hydraulic cylinder series 120
  • bore 25 mm to 300 mm
  • working pressure up to 150 bar
    up to 200 bar for bore 200 and up
  • round-head cylinder design
  • various mounting methods
  • honed and chrome-plated piston rod
  • test pressure = 1.5 x max. working pressure
  • upgradeable with sensor technology: position transducer, force transducer, proximity switch, etc.
Hänchen hydraulic cylinder series 120, upgradeabel position transducer, force transducer, proximity switch, etc.

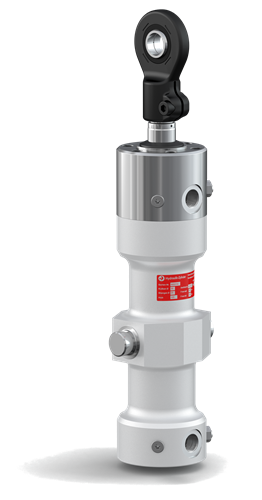

Industrial hydraulic cylinder series 300
  • bore 25 mm to 300 mm
  • working pressure up to 300 bar
  • round-head cylinder design
  • particularly energy-efficient
  • various mounting methods
  • honed and chrome-plated piston rod
  • test pressure = 1.5 x max. working pressure
  • upgradeable with sensor technology: position transducer, force transducer, proximity switch, etc.
Hydraulic cylinder series 300, working pressure up to 300 bar
Square hydraulic cylinder series 120
  • bore 12 mm to 25 mm
  • working pressure up to 150 bar
  • block-type cylinders
  • grinded and chrome-plated piston rod
  • available from stock
  • test pressure = 1.5 x max. working pressure
  • type of effect: single-rod
  • speeds: up to 0.2 m/s
  • for example for dosing lubricating grease

 Square hydraulic cylinder dimension
   Bore
(mm)
   Rod Ø
(mm)
   Stroke
(mm)
 Order no.
 12  6  30  2661010A
 16  8  40  2661110A
 20  10  50  2661210A
 25  12  50  2661310A

Standard cylinder configurations
Sealing and guiding systems

The sealing system in the cover and on the piston is the heart of a hydraulic cylinder and determines the possible applications. With this you determine the frictional properties and stick-slip behaviour of standard cylinders, which speeds can be achieved, and how side loads affect them.

Here you can learn more about the cover and piston equipment in the hydraulic cylinder.

Configure a hydraulic cylinder now.Via our HäKo you can design your individual hydraulic cylinder.

Accessories and equipment for standard cylinders
Mounting elements, assembly tools and tools

In the product configurator HÄKO, you can find our standard accessories and equipment to match your chosen cylinder.

Hydraulic cylinder accessories

You need the right accessories?
We provide:

  • spherical rod eyes
  • circular flanges
  • mounting plates
  • clevis brackets
  • screws
    and much more

For further information go to
Mounting elements.

You need the right accessories? We provide it.
Hydraulic cylinder tools and documents

You need help to simplify the handling?
We offer:

  • sealing and assembly tools
  • venting set
  • hook wrench
  • illustrated service instructions
  • engineering drawing in 3D-CAD
    and much more

For further information go to
Assembly tools.

You need help to simplify the handling? We offer it.

Technical data for Hänchen industrial hydraulic cylinder
Hydraulic cylinder from manufacturer

Type of effect: single-rod cylinder, double-rod cylinder | Sealing systems: Basic design, Servocop®, Servoseal®, Servofloat® | Speeds: up to 2 m/s |
Stroke: 1 - 6,000 mm

The hydraulic calculation of hydraulic cylinders, as well as the selection of suitable accessories, valves and data sheets can be done by you in our product configurator HÄKO.

         series 120          series 300
   Bore
(mm)
Rod Ø
(mm)
Force F1 | F2
(kN)
Max. pressure*
(bar)
 Force F1 | F2
(kN)
Max. pressure*
(bar)
25 12
16
7.4 |     5.7
7.4 |     4.3
150
150
   ---
14.7 |     8.7
   ---
300
32 16
20
12.1 |     9.0
12.1 |     7.4
150
150
   ---
24.1 |   14.7
   ---
300
40 20
25
30
18.8 |   14.1
18.8 |   11.5
    ---
150
150
   ---
   ---
37.7 |   23.0
37.7 |   16.5
   ---
300
300
50 25
30
40
29.5 |   22.1
29.5 |   18.8
    ---
150
150
   ---
   ---
58.9 |   37.7
58.9 |   21.2
    ---
300
300
60 30
40
50
42.4 |   31.8
42.4 |   23.6
   ---
150
150
   ---
   ---
84.8 |   47.1
84.8 |   25.9
   ---
300
300
80 40
50
60
75.4 |   56.5
75.4 |   45.9
   ---
150
150
   ---
   ---
150.8 |   91.9
150.8 |   66.0
   ---
300
300
100 50
60
80
117.8 |   88.4
117.8 |   75.4
   ---
150
150
   ---
   ---
235.6 | 150.8
235.6 |   84.8
   ---
300
300
125 60
80
100
184.1 | 141.7
184.1 | 108.7
   ---
150
150
   ---
   ---
368.2 | 217.4
368.2 | 132.5
   ---
300
300
140 80
100
230.9 | 155.5
230.9 | 113.1
150
150
   ---
461.8 | 226.2
   ---
300
160 80
100
301.6 | 226.2
301.6 | 183.8
150
150
   ---
603.2 | 367.6
   ---
300
180 100
120
381.7 | 263.9
381.7 | 212.1
150
150
   ---
763.4 | 424.1
   ---
300
200 100
120
140
628.3 | 471.2
628.3 | 402.1
   ---
200
200
   ---
   ---
   ---
942.5 | 480.7
   ---
   ---
300
220 120
140
160
760.3 | 534.1
760.3 | 452.4
   ---
200
200
   ---
   ---
   ---
1,140.0 | 537.2
   ---
   ---
300
250 120
140
180
981.7 | 755.6
981.7 | 673.9
   ---
200
200
   ---
   ---
   ---
1,472.0 | 709.2
   ---
   ---
300
300 160
200
1,413.7 | 1,011.6
   ---
200
   ---
   ---
2,120.6 | 1,178.2
   ---
300


* When pivot mounted, the pressure is limited to 120 bar.

F1 = Compressive force while the cylinder is extended | F2 = Compressive force while the cylinder is retracted
With double-rod cylinders, retraction and extension corresponds to the value F2.
