This is what distinguishes us:
  • Products with high dimensional accuracy
  • Customised design
  • Increased production plant availability
  • On-site support

Hydraulic cylinder as guide pillar
in founding frames

The hydraulic guide pillar is an externally hardened pillar with an integrated hydraulic cylinder. This way, loads coupled with the piston rod can be precisely guided and moved without straining the cylinder with side loads.

With the hydraulic guide pillar, two functions can be realised with one structural element while saving space at the same time: the linear movement of a hydraulic cylinder and the exact guide of a round pillar. Very high guide forces can be transmitted thanks to the hardened surface of the guide pillar.



Design

Single-rod cylinder with cushioning on both sides

Configurations

Sealing system of the cover: Servocop®
PU/NBR for hydraulic oil up to 100°C
PU+/NBR for HFC up to 60°C
FKM for temperatures up to 200°C

Quality of piston rod

20MnV6 chrome-plated and honed
42CrMo4V hardened, chrome-plated and honed

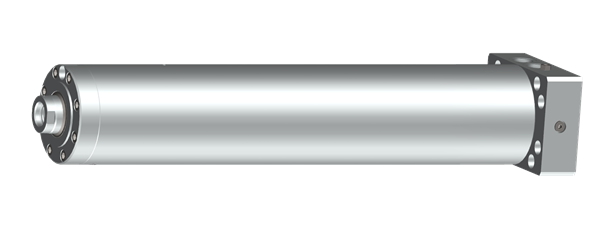

Hydraulic cylinder as guide pillar in founding frames
Mounting

Cylinder: Rectangular flange, cap-side,
Piston rod: Female thread

Hydraulic ports

in acc. with ISO 228
Connection position: cap and head side or both integrated on cap-side

Guide pipe

Exterior: hardened surface layer 52 HRC, optionally chrome-plated
Interior: honed

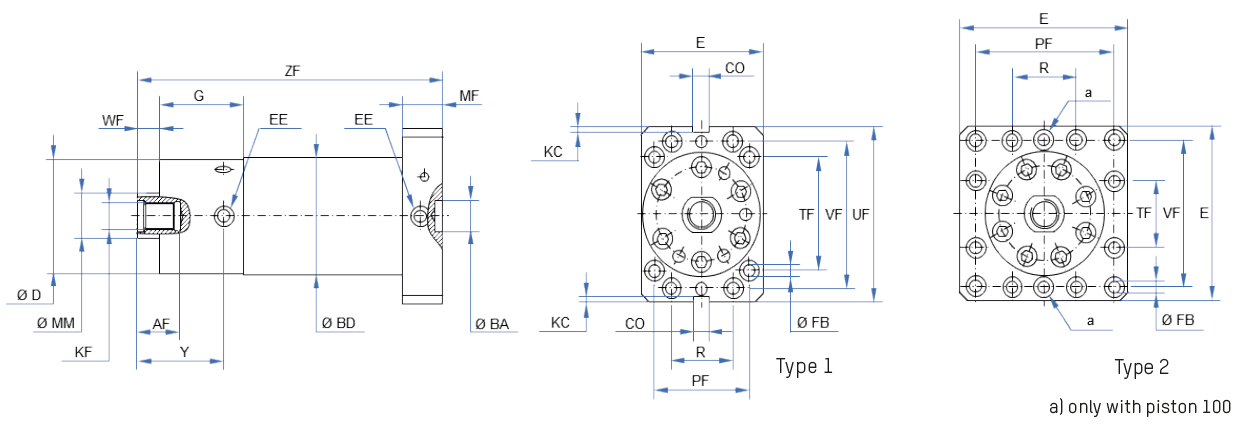

Technical data of hydraulic cylinder as guide pillar

Bore

MM
f7

Stroke** KF AF
min.
WF ZF** G MF BD
f9
D BA
H7
Y PL EE Item
80 50 430 M 30 35 28 729 28 50 130 129.8 40 78 27 G 3/4* 55514409
100 60 250 M 36 45 30 615 114 55 155 154 40 119 32 G 3/4 40640999
100 60 400 M 42 x 1,5 60 28 835 105 70 160 155 50 110 40 G 3/4 36866999
125 80

400

 M 60 x 2 55 42 949 154 70 180 179.8 50 162 33 G 1 40696999





Bore

Flange

UF E TF VF R PF CO
-0,1
KF FB p max. Item
80 Typ 1 185 130 155 122 60 102 - - 19 160 bar 55514409
100 Typ 1 225 155 150 190 64 118 25 5 21 200 bar 40640999
100 Typ 2 255 250 70 170 100 204 - - 26 160 bar  36866999
125 Typ 2 - 255 70 210 100 210 - - 26 160 bar 40696999

Dimensions in milimetres

*   EE head side additionally in cap-side flange
** Differing stroke and installation length

Core pull cylinders
for die-casting moulds

Core pull cylinders are especially sturdy hydraulic cylinders adapted to the requirements in die-casting machines.

With the externally installed position detection system with limit switch, both end positions can be set flexibly to any position. The piston rod is torsion-locked by the position detection system.

A modern sealing system prolongs the service life of the cylinders.



Design

Single-rod cylinder, optional with cushioning

Configurations

Sealing system of the cover: Servocop®
PU/NBR for hydraulic oil up to 100°C
PU+/NBR for HFC up to 60°C
FKM for temperatures up to 200°C

Quality of piston rod

20MnV6 chrome-plated and honed
42CrMo4V hardened, chrome-plated and honed

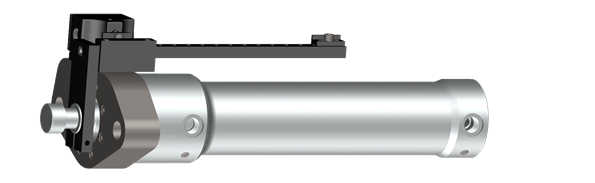

Core pull cylinder for die-casting moulds
Mounting

Cylinder: Quick change flange, head side
Piston rod: Flanged rod end

Hydraulic ports

in acc. with ISO 228
Connection position: cap and head side

Permissible pressure

up to 160 bar

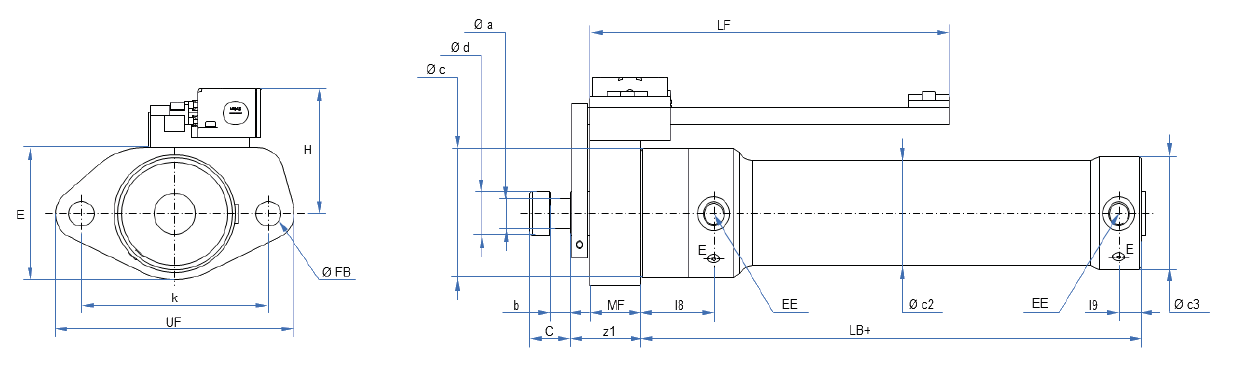

Technical data of core pull cylinder

Bore

Rod
  Ø
Port Ventilation LB a d C b c c2 c3 l8 l9
40 20 G 1/4  M 8 x 1  100 13 19 20 10 68 50 52 33 14
50 25 G 3/8  M 8 x 1  108 17 24 26 13 80 60 64 34 15
60 30 G 1/2  M 8 x 1  117 20 29 30 15 95 70 76 41 17
80 40 G 1/2  M 8 x 1  149 27 39 40 20 116 95 102 49 23
100 50 G 3/4  M 8 x 1  169 34 49 50 25 140 120 126 56 22
125 60 G 1  M 8 x 1  188 40 59 60 30 168 145 158 63 38
140 80

G 1 1/4

 M 8 x 1  216 54 79 80 40 200 160 180 75 31
160

100

G 1 1/4  M 8 x 1  234 67 99 100 50 220 190 202 80 50

160

120

G 1 1/4  M 8 x 1  273 80 119 120 60 240 220 228 110 46.5



Bore Rod
  Ø
z1 MF k FB UF E H LF+ Cylinder Flange

Position dedection
system

40 20 15 40 105 18 141 80 98 60 55568243 55568253 55568261
50 25 23 40 150 25 200 90 103 60 55568242 55568252 55568260
60 30 25 50 160 25 210 110 113 60 55568241 55568251 55568259
80 40 25 50 180 25 230 130 123 60 55567970 55567984 55568021
100 50 28 55 210 25 260 150 133 60 55568244 55568254 55568262
125 60 33 65 250 30 310 180 148 60 55568245 55568255 55568263
140 80 40 65 280 35 350 220 168 60 55568247 55568256 55568264
160 100 40 80 290 39 370 240 178 60 55568249 55568257 55568265
160 120 45 90 310 45 400 260 188 60 55568250 55568258 55568266

                                                                                                                                         Dimensions in milimeters
