The flange in the front part of the cylinder can be used for cylinder mounting. This makes sure that the cylinder force is applied centrically to the fixation so that no lateral forces are generated.
The cylinder can be mounted from both sides. This is a cylinder fixation without any degree of freedom that permits an inflexible installation.
The flange is equipped with spigots on both sides.
Additional parts for mounting, such as flanges, can be attached to the cylinder.
Do not strain cylinders when installing.

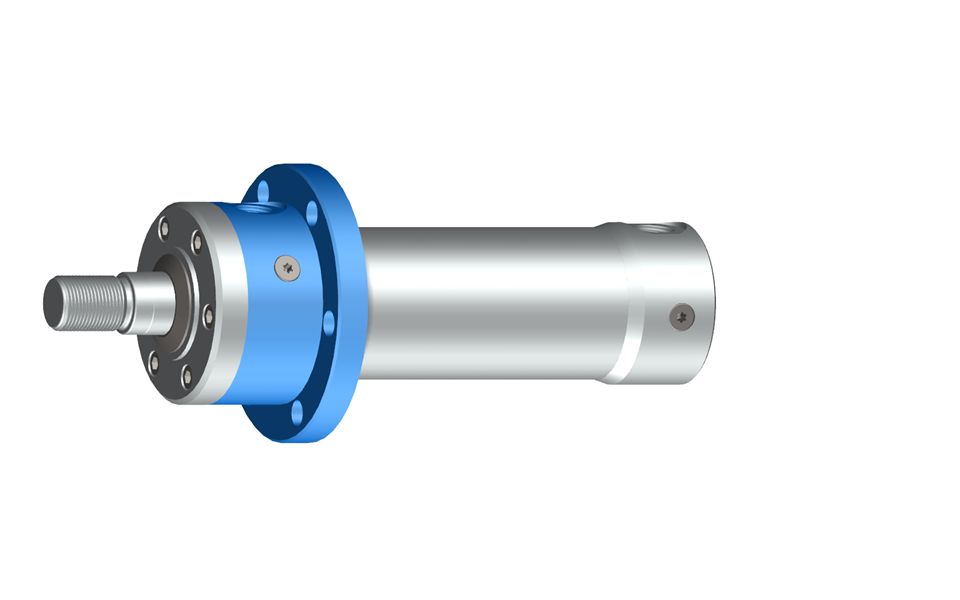

Single-rod cylinder
with circular flange on
cylinder body

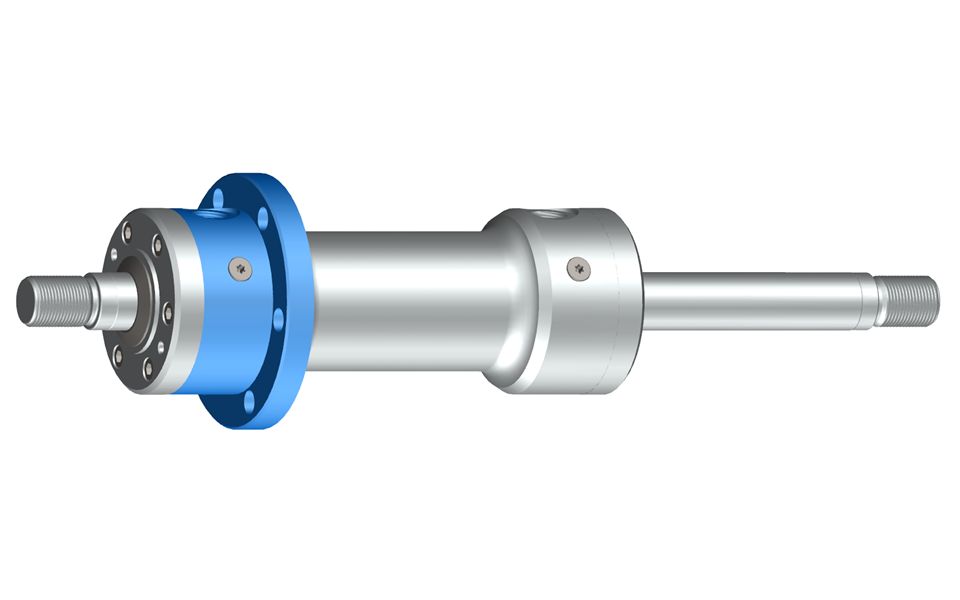

Double-rod cylinder
with circular flange on
cylinder body
