Configure a hydraulic cylinder now.Via our HäKo you can design your individual hydraulic cylinder.
This distinguishes the HäKo:
  • available online
  • flexible selection
  • great variety of types
  • dimension sheets
  • 3D data available on request
  • technical information

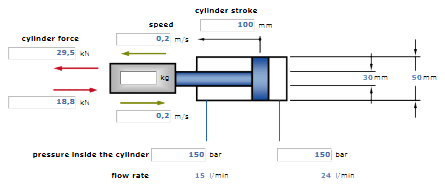

Easy - hydraulic cylinder calculator

  • wide range of parameters
  • design and calculation assistance
  • recommendations for equipment
HäKo - design and calculation tools

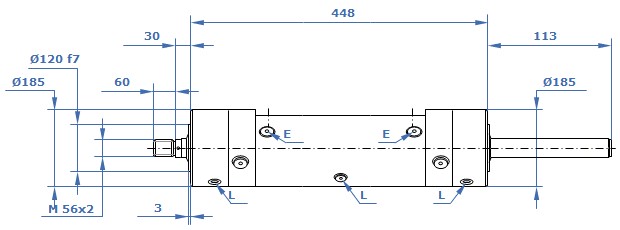

Direct - hydraulic cylinder dimensions

  • data/dimension sheets and technical information
  • price enquiry for your configuration
  • 3D CAD data available within a few hours
hydraulic cylinder data/dimension sheets

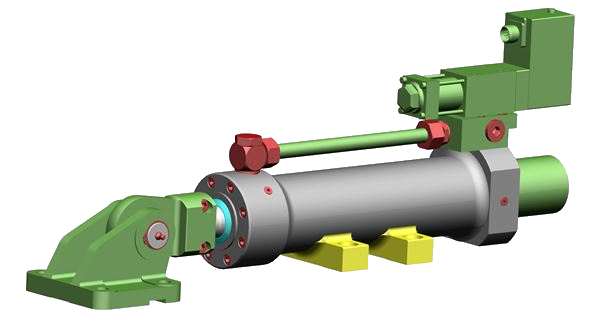

Useful - hydraulic cylinder accessories

  • flexibility due to countless variants
  • custom-made and still cost-efficient
  • expanded standard range – no prototype risk
customized hydraulic cylinders
The appropriate drawing for your interface

Our Hänchen configurator HäKo will help you find the best drive unit for your application, from cylinders, sensor systems and hydraulics to mounting points and useful accessories.

Before you make the effort yourself – save yourself work, time and costs! As we are offering you the required drawings in the appropriate CAD export format – quickly and …free!


One of these interfaces is certainly suitable:
3D-interfaces: DWG, DXF, IGES, Parasolid Version 13.0, Step Version 214

Tutorials about the product configurator
Explanatory videos on the use and design of hydraulic cylinders in HäKo

Our explanatory videos on the HäKo product configurator show you how it basically works and is structured. Furthermore, we are continuously working on further explanatory videos, for example how a test actuator is hydraulically designed.

Subtitles in your language:
You can activate the subtitle by pressing the "c" key or in the video at the bottom right. You can have it translated into your language via Settings (cogwheel symbol).

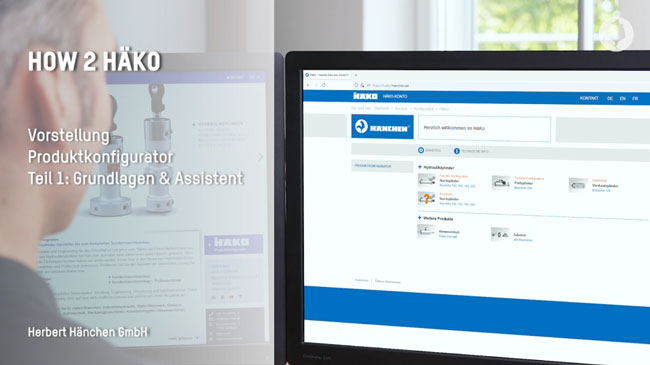

HOW 2 HÄKO - Part 1: Basics & guided configuration
HOW 2 HÄKO - Part 2: Flexible configuration

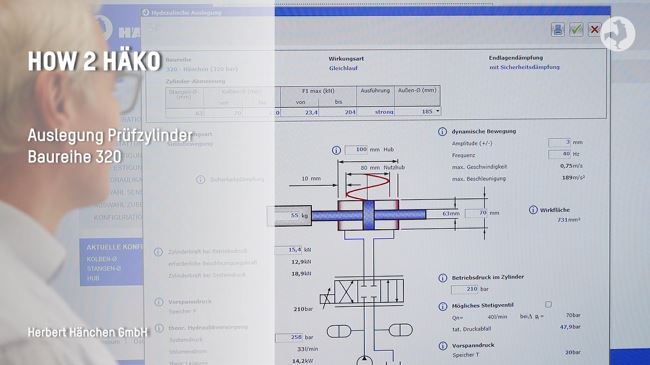

HOW 2 HÄKO - Part 3: Design of test cylinder series 320
