The two lugs welded onto the cylinder can be used for cylinder mounting. Since the cylinder force is applied excentrically, however, the potential generation of lateral forces has to be checked.
This is a cylinder fixation without any degree of freedom that permits an inflexible installation.
Additional parts for mounting, such as flanges, can be attached to the cylinder.
This attachment is not available in HäKo, but can be requested from Hänchen.
The position of the lugs on the cylinder tube is freely selectable.
Temperature and pressure make the hydraulic cylinder expand. For this reason, this type of mounting is not possible for long strokes.
Do not strain cylinders when installing.

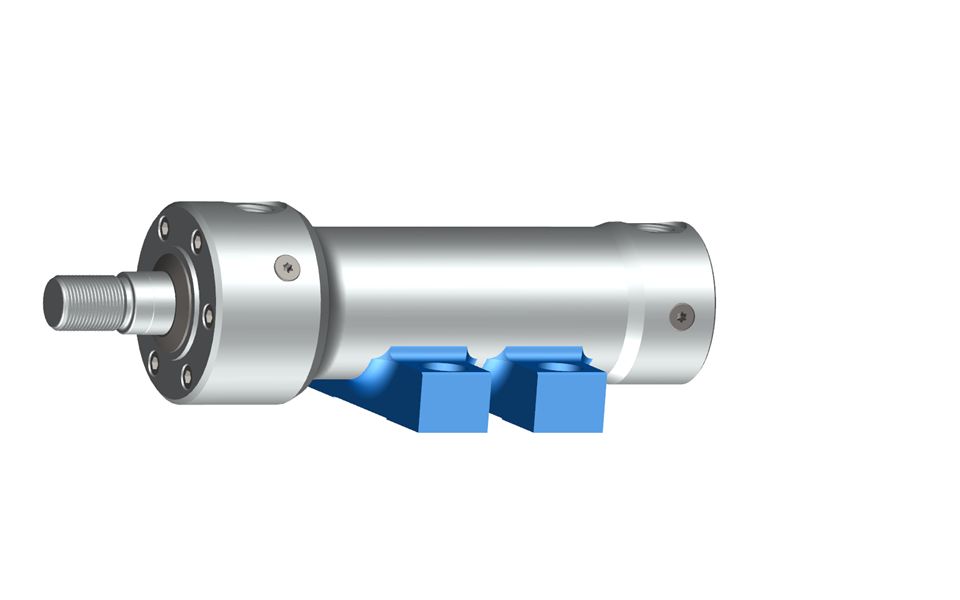

Single-rod cylinder
with welded side lug mounting

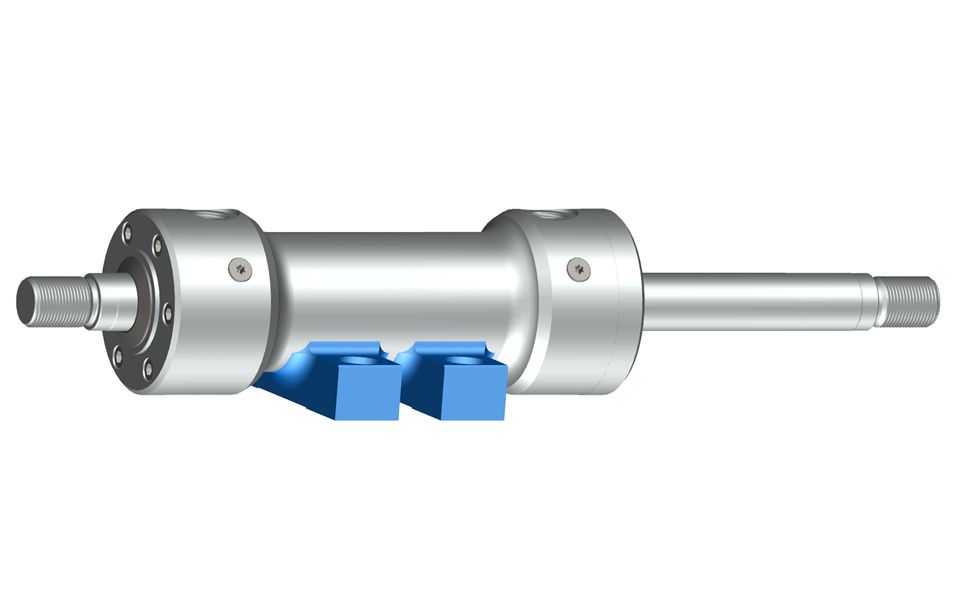

Double-rod cylinder
with welded side lug mounting
