The degree to which the piston rod projects out of the hydraulic cylinder in the retracted state can be individually adapted.
The piston rod ends of hydraulic cylinders can be extended in millimetre steps.
The extension of the free piston rod end will not change the cylinder stroke.

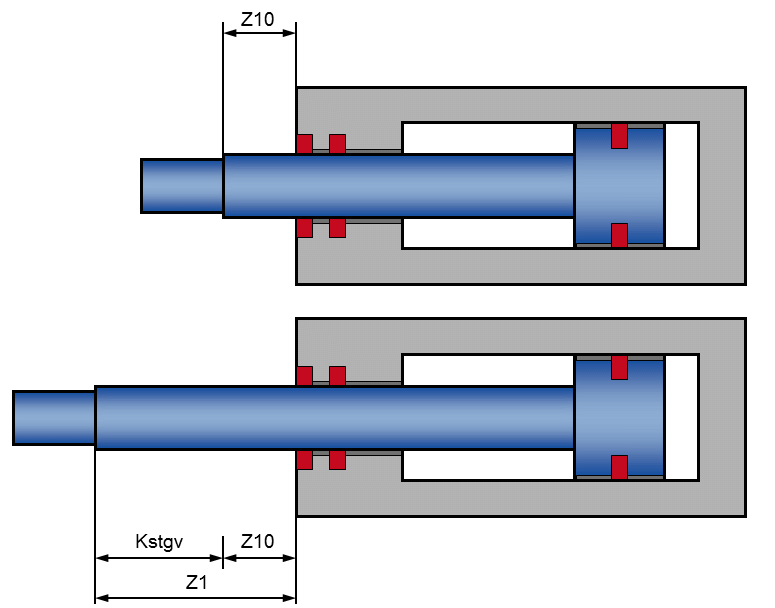

Z10 | free standard piston rod end |
Z1 | extended free standard piston rod end Z1=Z10+Prext |
Kstgv | piston rod end extension |
