Flanged rod ends are used for rapid mounting systems, for example, in order to enable rapid replacement of cylinders by way of divided retaining rings. This is necessary when there are alternating demands on the cylinders, such as a different stroke or force, in one machine.
The flanged piston rod end can be defined by recess diameter, recess length, recess position and outer recess diameter.
In double-rod cylinders, both piston rod ends can be defined independently.

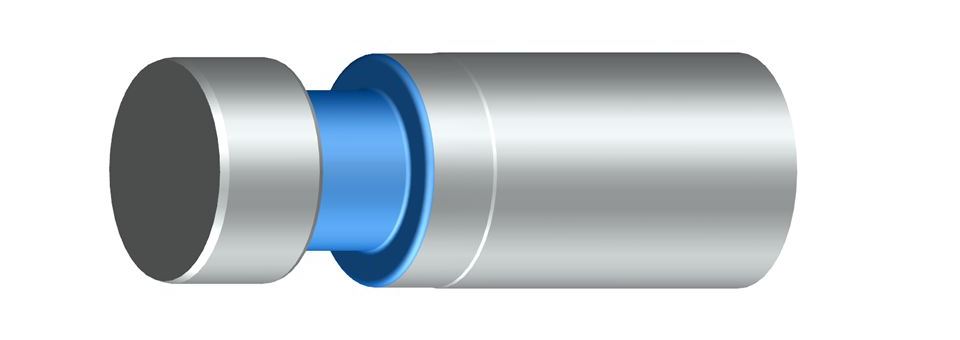

Piston rod end
with flaged rod end
