Replacing seals
General information
General information
Please note the general information on dismantling and assembling hydraulic cylinders under section Disassembly and assembly cover
| NOTE | Damage caused by improper tools
|
| NOTE | Damage to the sealing lips on the cover due to sharp-edged rod ends such as thread flanks or wrench flats!
|
To avoid damage to the sealing elements caused by unsuitable tools, we recommend using Hänchen assembly tool.
Seal replacement of the cover types
and the piston
Here you will find detailed information on seal replacement for the individual cover types and the piston.
|

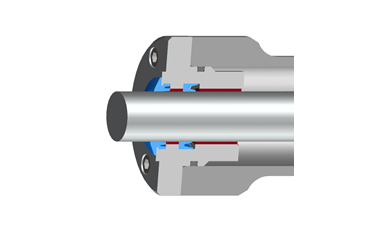

Lip seal and wiper ring |

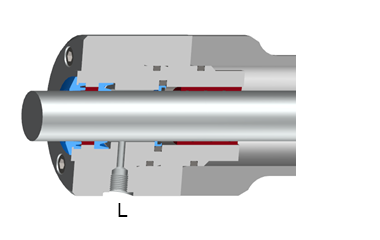

Compact seal, lip seal, wiper ring |

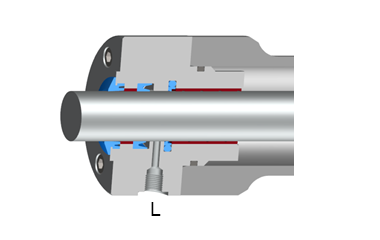

Compact seal, lip seal, wiper ring |
|

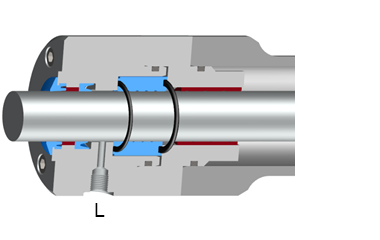

Floating gap seal, lip seal, wiper ring |

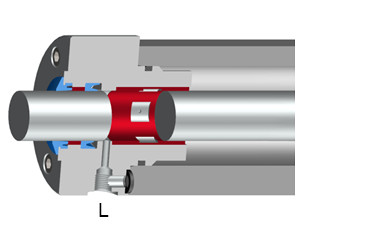

Functional oil seal, wiper ring |

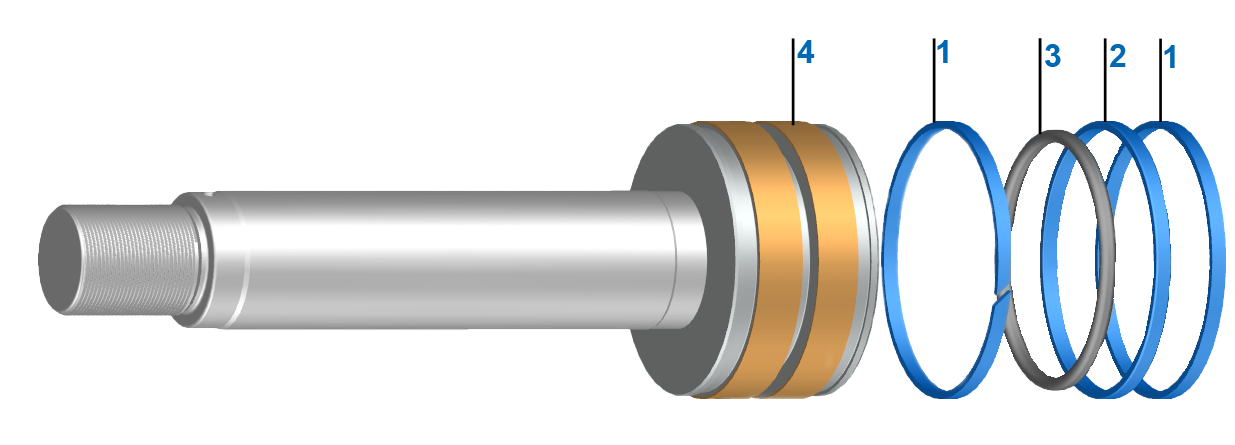

Rectangular compact seal |
