Servocop®
Sealing system cover
The sealing system Servocop® in the cover is suitable for sensitive low-friction movement. Due to the small difference between static and dynamic friction, largely stick-slip-free movement can be guaranteed. Servocop® is also especially suitable for long-stroke cylinders or in case of lateral forces.
Seal combination
- Lip seal
- Rectangular compact seal
- Wiper ring
Depending on the series, the seal materials and the guiding system, this system is suitable for:
| Piston speeds | up to 3 m/s |
| Temperature range | from -15°C to +200°C |

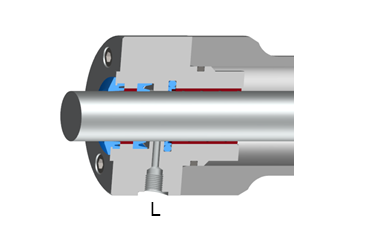

The functional oil is discharged into the tank through the functional oil port L without pressure, suction by vacuum is neither necessary nor permissible. Pre-stressing the functional oil line is admissible up to 5 bar.
Connect ports for functional oil externally.
